1BZ series Agricultural Machinery 1bz Hydraulic Heavy Duty Disc Harrow Tractor Implements Disc Harrow

Categories Disc Harrow
Brand Name: OEM
Place of Origin: CHINA
MOQ: 1 pcs
Payment Terms: T/T
Delivery Time: 15-20 days
Model Number: 1BZ
Certification: ISO9001
Packaging Details: Wooden case
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1BZ series Agricultural Machinery 1bz Hydraulic Heavy Duty Disc Harrow Tractor Implements Disc Harrow

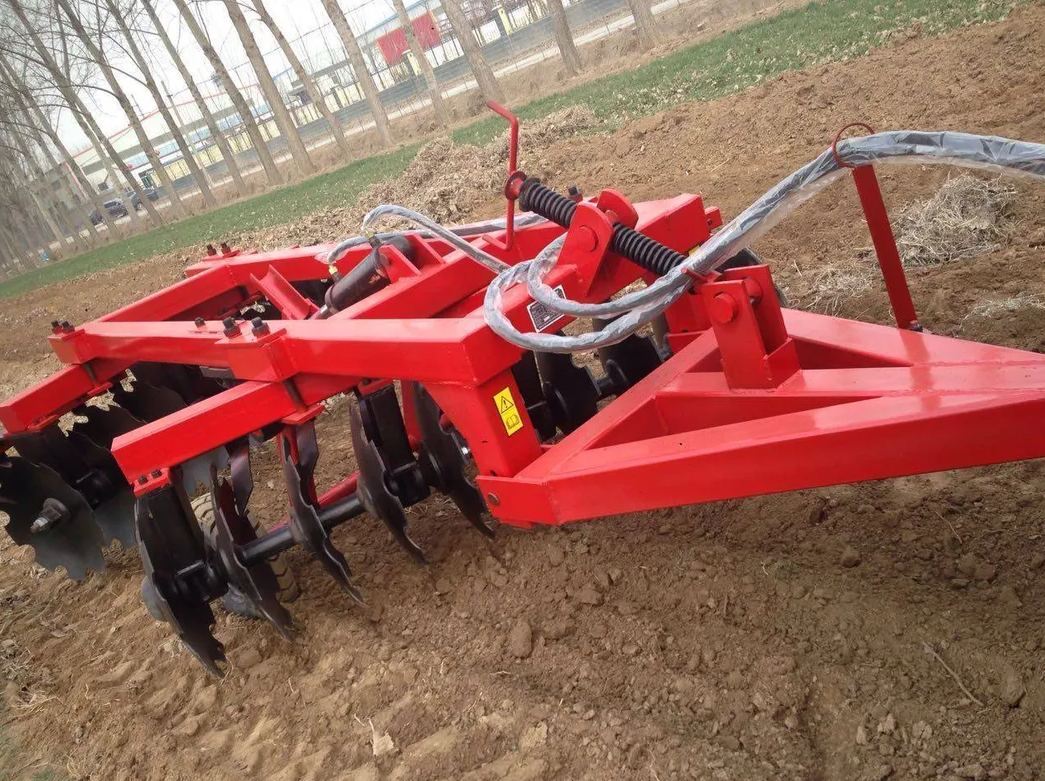

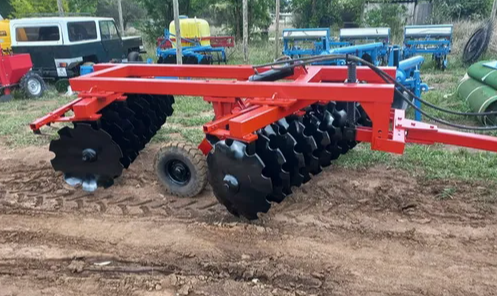

HYDRAULIC TRAILED HEAVY -DUTY DISC HARROW

1BZ series agricultural machinery heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.

Basic Info.

Model NO.
1BZ-2.2/2.5/3.0
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Traction
Drive Type
Tractor Trailed
Arbor Configuration
Horizontal Axis
Color
Red, Green, Blue, Yellow
Warranty
1 Year
Model
1bz-2.5
Working Width
2500mm
Working Depth
200mm
Qty of Discs
28
Total Weight
1500kg
Matched Power
90-130HP
Disc Size
26"X6
Disc Material
65mn Steel
Transport Package
Iron Box, Iron Frame
Specification
High quality steel
Trademark
YCHS
Origin
Yucheng City, Shangdong Province
HS Code
8432210000
Production Capacity
300sets/Month

Product Description

Agriculture machinery Heavy duty hydraulic disc harrow for Massey Ferguson tractor

PRODUCT INTRODUCTION

This tractor implments heavy duty offset hydraulic disc harrow for sale is well suitable for heavy clay soil, waste land and weedy field as well,mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.

• This tractor trailed hydraulic heavy duty disc harrow is trailed for 70-180hp tractor.
• Own hydraulic system to lift and down the transport wheel freely.
• High quality of difunctional oil cylinder.
• Compact and strong structure make the machine have long service life.
• Widely working width of this heavy disc harrow to be 1.8-5.3m.

TECHNICAL SPECIFICATION
Model1BZ-1.81BZ-2.21BZ-2.51BZ-3.01BZ-3.41BZ-4.01BZ-5.3
working width1800mm2200mm2500mm3000mm3400mm4000mm5300mm
working depth200mm
Q'ty of disc16202428323648
Total weight1160kg1250kg1350kg1430kg1550kg1900kg2500kg
Matched power70hp80hp90hp100hp120hp150hp180hp
LinkageTractor Trailed
