| Categories | High filler masterbatch machine |
|---|---|
| plastic processed: | PE, PP, PVC, wood-plastic, PE/PP |
| application: | Granules |
| Screw Design: | Double-screw |
| twin screw type: | Co-rotating Parallel Twin-screw |
| Screw Material: | 38CrMoALA |
| screw diameter (mm): | 71 |
| Screw L/D Ratio: | 40:1 |
| Screw Speed (rpm): | 500 rpm |
| Place of Origin: | Jiangsu, China |
| Brand Name: | YongJie |
| voltage: | 380V 50HZ |
| dimension(l*w*h): | Model |
| power (kw): | 132 |
| warranty: | 1 Year |
| key selling points: | Automatic |
| video outgoing-inspection: | Provided |
| core components: | motor, PLC, Gearbox |
| machinery test report: | Provided |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Application Field: | Wood plastic pelletizing machine |
| Name: | YongJie |
| Barrel material: | 38CrMoALA |
| Color: | any color as your require |
| Inverter: | ABB Brand |
| Motor brand: | WN/Siemens Beide |
| RPM ( r/min): | 400/500/600/800 |
| Torque(N.m): | 1015/1005/990/900 |
| T/N: | 4.7/4.6/4.2 |
| Marketing Type: | Hot Product 2019 |
| Condition: | New |
| Showroom Location: | None |
| Applicable Industries: | Manufacturing Plant |
| Warranty of core components: | 1 Year |
| Weight: | 1 KG |
| Company Info. |
| Nanjing Yongjie Qixin Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder caco3 filler masterbatch and dessicant master batch machine. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.
| Model | Diameter(mm) | L/D | RPM ( r/min) | Power (Kw) | Torque(N.m) | T/N | Capacity (Kg/h) |
| SJSL-20 | 20 | 32-44 | 600 | 5.5 | 30 | 4.8 | 6.5-15 |
| SJSL-36 | 36 | 32-48 | 600 | 15 | 115 | 4.2 | 30-75 |
| SJSL-51A | 51 | 32-52 | 500 | 45 | 405 | 5.1 | 100-200 |
| SJSL-51B | 51 | 32-52 | 600 | 55 | 415 | 5.2 | 150-25 |
| SJSL-63A | 63 | 32-62 | 400 | 55 | 620 | 4.4 | 160-250 |
| 500 | 75 | 675 | 4.8 | 200-300 | |||
SJSL-63B | 63 | 32-64 | 600 | 90 | 675 | 4.8 | 225-375 |
| 800 | 110 | 620 | 4.4 | 300-500 | |||
| SJSL-75A | 72 | 32-64 | 400 | 90 | 1015 | 4.7 | 225-350 |
| 500 | 110 | 1005 | 4.6 | 300-550 | |||
| SJSL-75B | 72 | 32-64 | 600 | 132 | 990 | 4.6 | 400-650 |
| 800 | 160 | 900 | 4.2 | 480-800 | |||
| SJSL-92A | 92 | 32-64 | 400 | 250 | 2815 | 5.9 | 650-1050 |
| 500 | 2250 | 4.7 | 750-1250 | ||||
| SJSL-92B | 92 | 32-64 | 600 | 280 | 2365 | 5.0 | 900-1500 |
| 800 | 2250 | 4.7 | 1200-2000 | ||||
| SJSL-135A | 135 | 32-48 | 400 | 315 | 6190 | 4.6 | 1500-2500 |
| SJSL-135B | 135 | 32-48 | 500 | 400 | 6750 | 5.1 | 200-3500 |
Application caco3 filler masterbatch and dessicant master batch machine
1. Masterbatch enforcing modification: PE, EVA + calcium carbonate, talc, titanium
dioxide, PVC, PP, carbon black.
2. Degradable master batch: PE, PS, etc. + starch, additives etc.
3. Anti-flame master batch: PE, EVA, etc. + Mg(OH)2, Al2(OH)3, etc.
Auxiliary
Air-cooling pelletizer cover |
|
cyclone |
|

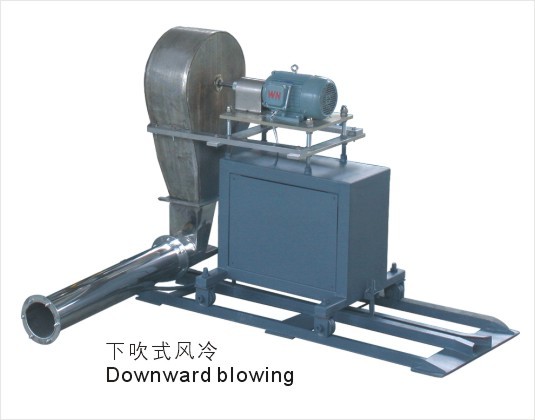

Blower |
|
Vibrating sieve |
|
Product bin |
|
Other product
Pelletizing in the water line
Air-cooling strand pelletizing line
Water-ring Hot-face pelletizing line
Water-cooling stand pelletizing line
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. How long is the warranty?
We can offer one-year warranty for the whole machine.
|
