| Categories | Battery Energy Storage System |
|---|---|
| Brand Name: | BATTLINK |
| Model Number: | 120KWh |
| Certification: | UN38.3 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Nigotiation |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs per month |
| Delivery Time: | 30 days |
| Packaging Details: | Carton |
| Rated Voltage: | 384V |
| Rated capacity: | 314Ah |
| System Energy: | 123.58KWh |
| Cycle Life: | 6000 |
| Weight: | About 1.5T |
| Dimensions(W*D*H): | 1278*1020*1970 |
| Cooling Method: | Air-cooled |
| Operating Temperature Range: | -20～+60°C |
| Company Info. |
| Shenzhen Huaxing New Energy Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

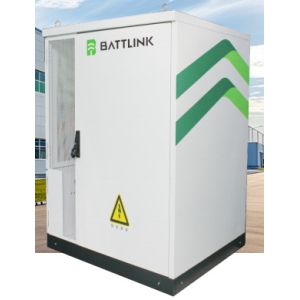

120KWh Commercial and Industrial Energy Storage System
Product presentation
BATTLINK Commercial and Industrial Energy Storage System adopts the
"ALL IN ONE" design concept, which integrates all components in a
standard cabinet. It can be applied to various scenarios of
industrial and commercial energy storage, covering industrial
parks, supermarkets, hotels, office buildings, data centers, solar
charging stations, etc. It effectively reduces electricity costs,
improves energy efficiency, and ensures the
continuous operation of key equipment.
Product features:
Real-time status monitoring and fault recording, realizing early
warning and post-fault analysis
Access to the cloud platform, supporting multi-device access and
multi-user sharing
Modular design, support parallel connection, convenient system
expansion
Highly integrated, pre-assembled system, easy to transport and
operate
Energy storage system partition isolation, active safety monitoring
Multiple circuit protection, including short circuit,
overvoltage,undervoltage, overload and overcurrent protection
Support off-grid, grid-connected, microgrid and other scenarios
Support long-term 105% overload use
Performance parameter
| Model | BATT-CI-12/35 | BATT-CI-30/50 | BATT-CI-50/100 | BATT-CI-50/120 |
| Battery Parameter | ||||
| System Energy | 35.84kWh | 51.2kWh | 107.5kWh | 120.58kWh |
| Rated Voltage | 51.2V | 512V | 384V | 384V |
| Voltage Range | 46.4V～56.8V | 464V～568V | 348V～426V | 348V～426V |
| Battery Type | LFP,3.2V100Ah | LFP,3.2V100Ah | LFP,3.2V280Ah | LFP,3.2V314Ah |
| System | 51.2V700Ah(16S7P) | 512V100Ah(160S1P) | 384V280Ah(120S1P) | 384V314Ah(120S1P) |
| Cycle Life | 6000 | 6000 | 6000 | 6000 |
| PV DC input | ||||
| Maximum Input Current | 18kW | 60kW | 100kW | 100kW |
| MPPT Operating Voltage Rage | 90V-550V | 150V-850V | 150V-850V | 150V-850V |
| Qyt.of MPPT/Maximum NO.of Input Strings | 4/4 | 3/6 | 4/8 | 4/8 |
| Maximum Current | 15A | 60A | 40A | 40A |
| AC Output Parameter | ||||
| Rated Power | 12kW | 30kW | 50kW | 50kW |
| Maximum Output Apparent Power | 13.6kVA | 33kVA | 55kVA | 55kVA |
| Rated Grid Voltage | 220/230V | 380/400V | 380/400V | 380/400V |
| Rated Grid Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Maximum Input Current | 52A | 86.6A | 76A/72.2A | 76A/72.2A |
| System Parameter | ||||
| IP Grade | IP 55 | |||
| Cooling Method | Air-cooled | |||
| Operating Temperature Range | -20～+60°C | |||
| Operating Humidity Range | 0-95% | |||
| Operating Altitude | ≤4000m | |||
| Communication Interface | RS485,Ethemet | |||
| Communication Protocol | Modbus-RTU,Modbus-TCP | |||
| Certificates | UN38.3,G99 ,VDE-AR-N 4105, VDE-V-0124,EN50549-1,EN50549-2 | |||
| Weight | About 0.5T | About 0.75T | About 1.5T | About 1.5T |
| Dimensions(W*D*H) | 1015*840*1419mm | 1257*1120*1407mm | 1278*1020*1970mm | 1278*1020*1970mm |
|
