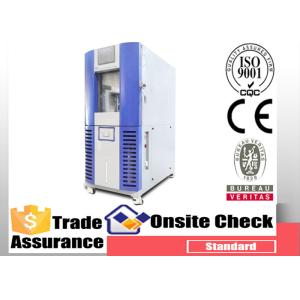

PID Control Temperature Humidity Chamber Environmental Test Equipment

PID control Temperature Humidity Chamber Environmental Test Equipment

Downloadable Information

Thermal Shock Chamber.pdf

UV Accelerated Weathering Tester.pdf

Water spray test chamber.pdf

Dust Chamber.pdf

Haida IPX1 - IPX8 Rain Test Chamber.pdf

Temperature and humidity chamber.pdf

Operation Manual for UV Aging Test Chamber - Contr...

Performance

Environment testing chamber can simulate both temperature and humidity. Controlled humidity from 10% RH to 95% RH can be maintained within the dry-bulb temperature range of +10°C to +85°C, limited by a 6°C dew point. For lower dew point conditions (low RH or relative humidity at low dry-bulb temperatures), you will need dry air purge or GN2 (gaseous nitrogen) purge. See the humidity range chart on the specification page of each temperature-humidity chamber for humidity range limits.

Questions for Performance Evolution Request:

System & Performance Options

• Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
• Water-cooling system.
• Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
• Additional shelves, 50 Kg loading
• Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters

Specifications :

Range – 70 to 150°C

Range – 40 to 150°C

Features:

Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug
Three levels of overheat protection
115V main power for BTL-433 model
High performance and quiet operation (65 dBa)
Easy lift-off service panels, electrical access on left

Standard Features:

• Stainless# 304 steel for interior
• Paint steel for exterior
• Foam-insulated door for rigidity and long life
• Plastic water tank easy for maintenance
• Observation Window with frost free function
• High performance refrigeration system
• Easy user interface for TEMI-880 PLC controller
• One 100mm cable port/ Customer specified
• One shelve, 10 Kg loading & 4 casters included
• Van Type Sirocco,L134,Fan
• PID controlled-Stainless Steel Humidifier
• DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40 °C
• USB port for data output
• Anti-explosive interior lamps
• Data logging chart recorders, paperless recorders stored data in the PLC.

Performance Indicators
Temperature Range RT + 10 ℃ ~ 100 ℃ Humidity 80 ~ 98% R · H fluctuation / uniformity ≤ ± 0.5 ℃ / ± 2 ℃ temperature deviation +2%, - 3% R · H Heating time of about 20min at room temperature ~ 100 ℃ temperature control ± 1 ℃ ± 2%

Control System
Imported microcomputer temperature controller wet integrated controller (display directly percent humidity).
Accuracy range setting accuracy: temperature ± 0.1 ℃, humidity ± 0.1% R · H, indicating accuracy: temperature ± 0.1 ℃, temperature ± 0.1% R · H temperature and humidity sensors platinum platinum resistance · PT100Ω.
Heating system is completely independent system, electric heating nichrome heater.
Isolated external humidification systems, stainless steel boiler type shallow surface evaporative humidifier.
Circulatory system temperature low noise air conditioning motors, leafy centrifugal wind wheel.

Heating System
Far-infrared heating using nickel-chromium alloy heating wire heating speed;
High temperature, low temperature completely independent systems;
Temperature control P · I · D + S · S · R system with channel coordination control;
Temperature control the output power by the microcomputer calculus, to achieve high accuracy and high efficiency power efficiency.
