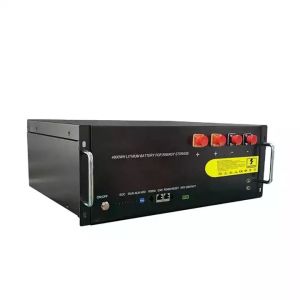

5kw Solar Energy System Rechargeable 48v 100ah Lithium Lifepo4 Battery

Categories Lithium Battery Pack
Brand Name: Hochiry
Certification: TUV
Place of Origin: CHINA
MOQ: 10PCS
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece per week
Delivery Time: 10-15 work days
Packaging Details: Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm
Product name: Rechargeable 48v 100ah Battery
Battery Type: LiFePO4
Cycle life: 3000cycle/6000cycle
Protection: Built-in Smart BMS
Capacity: 50Ah/80ah/100Ah/200Ah
Application: Solar, Wind, UPS Energy Storage
Communication Port: RS232, RS485, CAN
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

5kw Solar Energy System Rechargeable 48v 100ah Lithium Lifepo4 Battery

Features
1. Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
2. Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
3. Long lifespan: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
4. Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
5. Easy Installation
Basic Parameters
48150
Nominal Voltage (V)
51.2
Nominal Capacity (Wh)
7680
Usable Capacity (Wh)
6144
Dimension (mm)
480*678*178
Weight (Kg)
60
Discharge Voltage (V)
45.6-57.6
Charge Voltage (V)
56-57.6
Charge / Discharge Current (A)
50A(Recommend)
100 A(Max)
Cycle Life
>6000,25
Power Consumption
<10W Work
Monitoring Parameters
System voltage,current,cell voltage,cell temperature,module temperature
SOC
Intelligent algorithm
Communication
CAN/DRY CONTACT
Operating Temperature Range
-10~50
Transport or Storage Temperature Range
-20-45
Humidity
15%~85% (No Condensing)
Installation
1.Put battery modules into cabinet and connect the cables
Note: If customer needs cabinet, please contact our sales
1.Put the battery into the cabinet
2.Drive the 4 pcs screws
3.Connect the cables between battery modules
4.Connect the cables to inverter
2. Power On
Double check all the power cable and communication cable
(1) ON/OFF
Switch on all the battery modules and the green LED light below will be on
(2) Set ADD
Set ADD follow ADD instruction, pack 1 will be host, others are slaves
