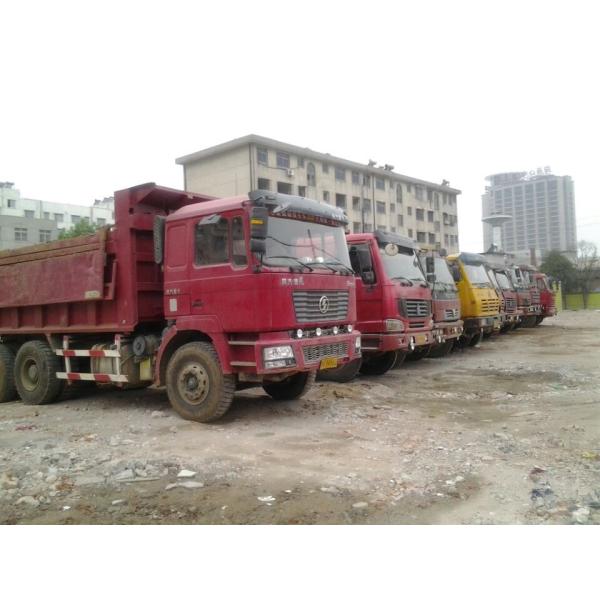

XDEM Shanqi SHACMAN AOLONG 8x4 336hp 31ton Dump Truck SX3315BM286 for sale
| Model No: | SX3315BM286 | drive wheel: | 8X4 |
Wheel base (mm): | 1800+2800+1350 | Length(m): | 9.206 |
| width(m): | 2.49 | height(m): | 3.45 |
| wheel track(mm): | front:1939/1939, back:1860/1860 | gross vehicle weight(t): | 13.87 |
rated load weigh(t): | 17 | Max weight(t): | 31 |
| Approach angle(°): | 28 | Departure angle(°): | 45 |
Place of origin: | Xi’an | notes: | also can use:11.00R20,12.00-20,12.00R20 Tyres |
| Container>> | |||
| Length (m): | 6.5 | Width(m) : | 2.3 |
| Height(m): | 1.3 | Container form: | dump |
| engine>> | |||
| engine model: | Weichai WP10.336N | Cylinder form: | 6 |
| fuel: | diesel | Displacement(L): | 9.726 |
| Emission standard: | Euro III | horse power(hp): | 336 |
| Max output(KW): | 247 | Torque(N·m): | 1500 |
Max torque speed: | 1350-1500 | rated speed(RPM): | 1900 |
| Engine type: | Water cooling, four strokes, with the exhaust brake, direct injection, turbocharging | ||
| gearbox>> | |||
| gearbox model No: | Fast 9JS135 | number of Rear gears: | 1 |
| number of front gears : | 9 | ||
| chassis >> | |||
| rear axle: | Rear axle load Capacity(KG): | 18000 | |
Final drive ratio: | 5.919 | Number of leaf springs: | left14right13/left14right13/12 |
| tyre>> | |||
| Tyre No: | 12 | tyre specification: | 11.00-20 |

|
