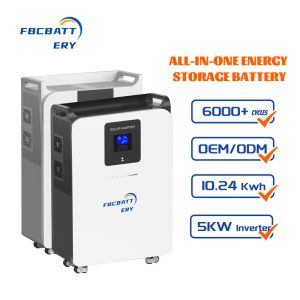

Home Solar Lithium Battery , 48v Solar Lifepo4 Battery Packs

Categories All In One Solar System
Brand Name: FBC
Model Number: YT
Certification: UN38.3,MSDS
Place of Origin: China
MOQ: 2
Price: 1500~2500 Dollar/item
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/item/day
Delivery Time: 14~28work days
Packaging Details: Carton cushioning material Product
Battery: home solar power system battery
inverter: 5KW/customize
capacity: 5kwh/customize
customization services: OEM/ODM
Output voltage waveform: pure sine wave
Rated input voltage: 220/230Vac
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Home Solar Lithium Battery , 48v Solar Lifepo4 Battery Packs

Home energy storage inverter battery all-in-one

advantage


Battery, inverter integrated design, no need to install multiple times, top handle and lower roller design, more convenient and labor-saving when moving


Using LifePO4 battery pack, the service life is 10~20 times of the traditional lead-acid battery, and the weight is only one-third of the same capacity lead-acid battery, LifePO4 battery is more environmentally friendly and will not produce heavy metal pollution


From first-line manufacturers such as EVE CATL and other international well-known manufacturers, after the purchase back, the company's quality inspection department will conduct secondary testing to ensure the quality of each lifepo4 battery, the product is equipped with BMS to protect the safety of the battery during charging and use


We have our own factory, production department and technology development department to support the customization of all battery products in our store, OEM/ODM can be




Grid module
Rated input voltage220/230Vac
Input voltage range

(170Vac~280Vac) ±2%

(90Vac-280Vac)±2%

frequency50Hz/ 60Hz (Automatically detects)
Frequency range

47±0.3Hz ~ 55±0.3Hz (50Hz);

57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/short circuit protectiondisconnect
efficiency>95%
Transfer time (bypass and inverter)10ms (Typical value)
AC backfill protectionYES
Maximum bypass overload current40A
Inverter module
Output voltage waveformpure sine wave
Rated output power5000 (VA)
Power Factor1
Rated output voltage230Vac
Output voltage error±5%
Output frequency range

50Hz ± 0.3Hz

60Hz ± 0.3Hz

Efficiency>92%
Overload protection

(102%< load <125%) ± 10%: report an error and shut down the output after 5 minutes;

(125%< load <150%) ± 10%: report an error and shut down the output after 10 seconds;

Load >150% ±10%: report an error and shut down the output after 5 seconds;


peak power10000VA
On-load motor capacity

4HP


Battery voltage range40.0Vdc~60Vdc ± 0.6Vdc (Under-voltage alarm / shutdown voltage / the over-voltage alarm/over-voltagerenew…LCD Screen can be set)
Power saving modeload≤50W
Grid charging
maximum-charging current (can be set)60A
Charging current error± 5Adc
charging voltage range40 – 58Vdc
Short circuit protectionCircuit breakers and blown fuses
Circuit Breaker Specifications40A
Overcharge protectionAlarm and turn off charging after 1 minute
Solar change
Maximum PV ,Open circuit voltage145Vdc
PV Operating voltage range60-145Vdc
MPPT voltage range60-115Vdc
Battery voltage range40-60Vdc
Maximum input power4400W
Solar charging current range (can be set)

0-80A

Charging short circuit protectionblow fuse
Wiring protectionreverse polarity protection
Maximum Hybrid Charge Current( PV+AC)
Maximum hybrid charge Current (can be set)0-140A
Other Specification
Range of working temperature range-15°C to 55°C
Storage temperature range-25°C ~ 60°C
Humidity range5% to 95% (Three anti-paint protection)
Noise≤60dB
Heat dissipationForced air cooling, adjustable wind speed
Communication interfaceUSB/RS485(WiFi/GPRS)/Dry Node Control
