| Categories | 1000w Portable Power Station |
|---|---|
| Brand Name: | OEM/ODM |
| Model Number: | ABS-1100W |
| Certification: | CE, ROHS, MSDS, UN38.3 |
| Place of Origin: | China |
| MOQ: | 100 |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | Stocks and 12weeks |
| Delivery Time: | 1-8weeks |
| Material: | Lithium-ion 21700-4AH(6S12P), Aluminum |
| Color: | Black, Silver |
| Capacity: | 1065.6Wh/288000mAh |
| Features: | large power, portable, high conversion rate, |
| Weight: | NW: 9.72KG, GW: 10.8KG |
| Size（mm): | Net : 190*240*305, Pakcing: 400*285*390 |
| Company Info. |
| Fuan Acepow Equipment Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

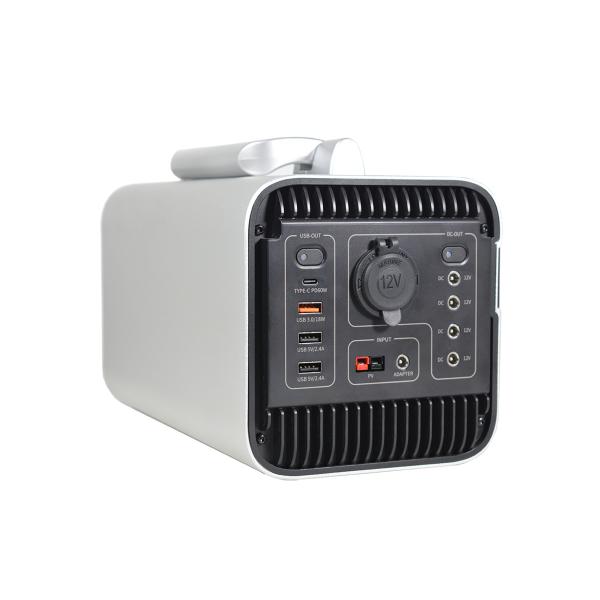

1. Description of 1000w Portable Power Station ABS-1000W:
Product name:
Aluminum Housing Emergency Portable Power Station For Camping Outdoor Power Supply Statioin /portable power pack /portable power supply /solar charge portable battery station
(AC output voltage and frequency are customized , according to different countries and regions.)
2. Specification of 1000w Portable Power Station ABS-1000W
| Model | ABS-1000 | |
| 3 INPUT methods- (Conversion success rate: 92%) | Cell for AUTO | |
| 1,DC | Adapter: 22V/5A(110W) , around 10-11 hours can be fully charged | Lithium-ion 21700-4AH(6S12P) |
| 2,PV | Anderson Port: 200W Max (10A18-24V) | 1000W pure sine wave |
| 3, Type C | PD100W (double pass) | Cell capacity: 1065.6Wh/2880000mAh |
| 12 OUTPUT ports- (Conversion success rate:92%) | Operating temperature | |
| 1,USB | 2 x USB output 5V/Max2.4A volume peak26w | Charging temperature: 0〜40"C (32-104T) |
| 2,USB(QC3.0) | 1 xUSB output 5V/3A,9V/2A,12V/1.5A Max18W | Discharge temperature: -10 〜60"C (14-140T) |
| 3,AC | 2xAC output 220V/ 50HZ Max: 2000W | Storage temperature: -20^4513 (-4-113T) |
| 4,DC | 4 xDC output 13.2V=10A Max: 132w | Dimensions |
| 5, TPYE-C | 1 x MaxPD60W 5V/9V/12V/20V=3A, support PD3.0 protocol, max: 60w | Product size: 286X150X158MM packing size: 330X220X290MM NW6.6KG/GW7.1 KG/CTN Miilen-Rate bursting test BMC cetificate |
| 6,Car port | 1 x 13.2V/5A Max:132w | |
| 7,Lighting | 1x4 modes & 4W multifunctional lighting (include SOS signal) | Lifecycles >500cycles |
3. Advantages of 1000w Portable Power Station ABS-1000W
(1) This series uses 21700 Ternary lithium ion cell, 4 strings totally.
(2) Inverter adopts high-frequency resonance technology, high efficiency and low loss of the same size capacity volume 30% smaller.
(3) The inverter adopts Eejing Micro 8025 and land-core IGBT scheme, with current monitoring of four bridge arms and constant power control to ensure the safety of inverter output.
(4) TYPE-C supports two-way input and output.
(5) BMS adopts the middle gauge coulometer to feed back the battery status to the main control system through Shengquan MCU, making the work safer.
FAQ for 1000w Portable Power Station ABS-1000W
Q: Does OEM OR ODM accepted?
A: Yes, OEM and ODM are available.
Q: Can I order a sample to check the quality?
A: Yes, sample order is welcomed.
Q: Do your products have any certifications?
A: Yes, We have full range of certificates of 1000w Portable Power
Station, like CE, RoHs, FCC, PSE, etc.
Q: What’s the production capacity of your company?
A: 10,000pcs per item every month.
Q: How long is the warranty of your products?
A: We offer one year warranty since the delivery of goods.
Q: What’s the leading time for mass order?
A: According to the quantity of the order, we will ship it for you
as soon as possible.
|
