Handheld 1D 2D Barcode Scanner Wired Android Portable Bar QR Code Reader

Categories POS Barcode Scanner
Brand Name: Luckydoor
Model Number: K-625
Certification: CE FCC Rohs
Place of Origin: Made in China
MOQ: 1pc
Payment Terms: T/T, Western Union, MoneyGram, L/C, Paypal
Supply Ability: 50K-60Kpcs / month
Delivery Time: 1-3 working days
Packaging Details: Single standard packing box and carton
Interface: USB-HID,RS232
Cable: 2M straight
Scan type: CMOS
Depth of field: 60~250mm
Resolution: 4mil
Material: ABS+PC
Decoding: QR code, 2D, 1D
Scan speed: 250mm/s
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Handheld 1D 2D Barcode Scanner Wired Android Portable Bar QR Code Reader


Handheld 1D 2D Barcode Scanner Wired Android Portable Bar Qr Code Reader


Product Description:


Our K-625 scanner is with high performance. Adopt high-performance hardware to accelerate decoding chipscan code quickly and accurately. You can use the product to scan 1D or 2D barcodes from screen or paper. This handle held barcode scanner can be used for Store, Restaurant, Pharmacy, Clothing, Supermarket, Warehouse, Logistics, Library, Hospital, Warehouse.


Product Features:


1. Speed up transactions and avoid human errors in every retail or hospitality environment.

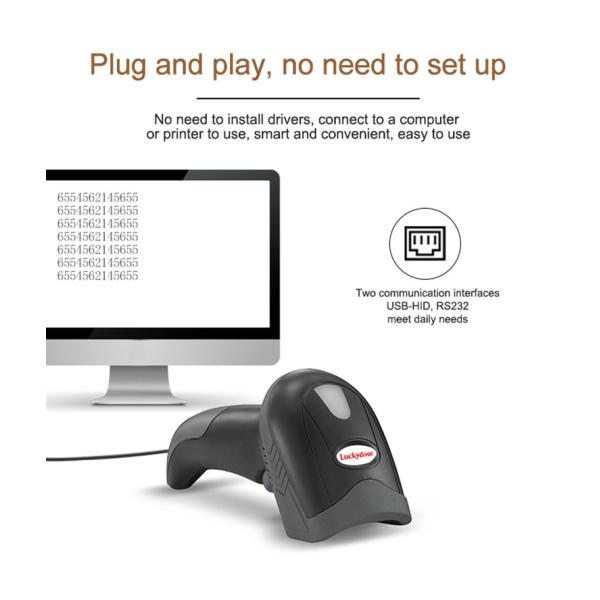

2. The USB Barcode Scanner is plug and play, MATCH VARIOUS SYSTEMS, Connect to the usb port of laptop or desktip


3. Support quick scanning, even with poor or damaged barcodes.


4. The scanner can also be configured to autoscan without having to press the trigger.


Product advantage:


1. Excellent Error-Correcting Performance, Strong Decode for Damaged Incomplete Barcode, fuzzy barcode, Twsited Wrinkledbarcode, Reflective barcode, Colorful and Long Barcode etc.


2. Excellent Decoding Ability, Support All 1D/2D Bar Code In The Market, such as QR Code, PDF417, Data Matrix


3. Fast Accurate Reading Speed: 32Bit CPU super decoding ability that the speed can up to 250mm/sec.


4. Provide 25 kinds of languages (Please write to our customer-service if you need Spanish, German, French, Italian, Japanese instructions which we can provide PDF manual for you).


5. Add custom prefixes/ suffixes, delete characters. Add keyboard keys/ combinations (terminator TAB, CR&LF, etc.)


Product Specification:


Performance Parameters
Light Sources617nm LED Aimer, White LED
Supported symbologies

1D: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14, limited RSS, extended RSS

2D: QR Code, Data Matrix (ECC200), PDF417

Scan TypeImage CMOS
Image sensor640*480
Scan ModeManual/Continuous/Automatical Scanning
Scan angleYaw±65°, Rotation 360°, Pitch±60°
Precision1D≥5mil, 2D≥10mil
Depth of scan field35-190mm (EAN13,13mil, PCS90%)
Error RateLess than 1/5million
InterfaceUSB-HID, RS232, USB-COM
Physical Parameters
Dimensions79.7mm*69mm*155mm
Weight112g
MaterialABS+PC
Cable Length2m straght
Environmental Parameters
Operating Temperature-20℃ ~ 60℃
Storage Temperature-40℃ ~ 70℃
Humidity5% to 95% RH (Non-condensing)
Shock ResistanceWihtstands multiple times 1.5 m drops to concrete
Electrical Parameters
VoltageDC5V ±5%
Current135mA (Operating)

Product Pictures:



FAQ:


1. OEM:
Free customization MOQ: 100/200pcs


2. LOGO
Print your brand logo


3. OUR SCANNERS
100+ model appearance for your choice


50+ barcode scanning solutions to match various usage fields


Support all wired and wireless connection optionson the market


Support the customizationof product labels, outerbox labels, etc.


4. ODM
APPEARANCE DESIGN, Render within 24 hours


HARDWARE ENGINEER, Design PCB boardcircuit within 24 hours


MECHANICAL DESIGN, Produce the structuraldrawing within 24 hours


SOFTWARE ENGINEER, Simulate the softwareeffect within 24 hours
